When planning a commercial or industrial (C&I) solar project on a metal roof, many procurement managers view the L-feet simply as a standard, interchangeable piece of aluminum. However, experienced EPC engineers and solar installers know that a difference of just 20mm in height can be the deciding factor between a highly efficient, lifetime-surviving project and a costly engineering failure.

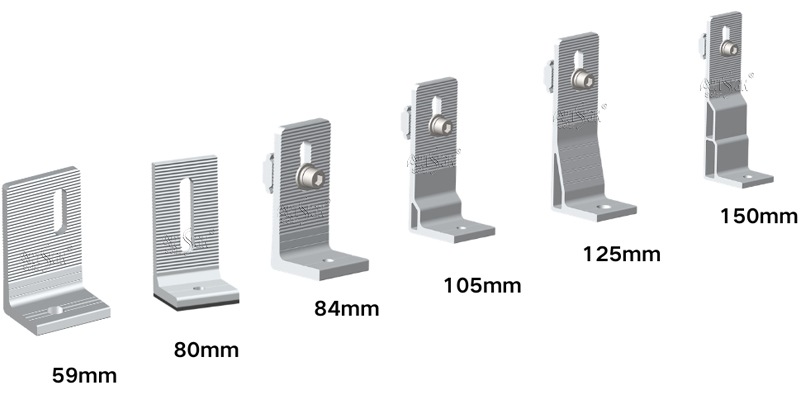

At Art Sign, we offer a comprehensive range of solar panel L feet height: 59mm, 80mm, 84mm, 105mm, 125mm, and 150mm. All of our L-feet are designed with Universal solar rails compatibility, allowing them to seamlessly match all standard solar rails and mounting components on the market.

But why does having access to so many different heights matter? Let’s take a deep dive into the engineering reasons behind L-feet dimension.
3 Critical Roof Pain Points Solved by L-Feet Height Selection
Selecting the perfect L-feet height directly addresses three of the most common challenges faced during metal roof solar installations:
1. Eliminating Corrugation Height Conflicts

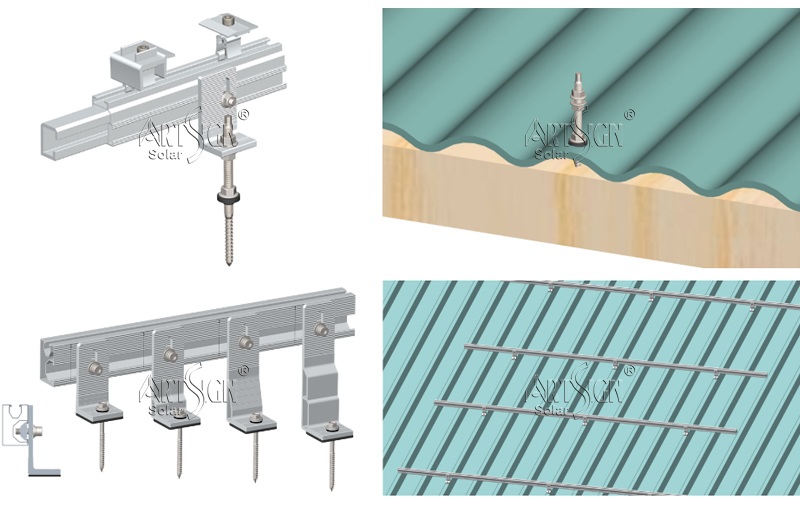

Metal roof solar mounting, that roofs come in countless profiles—including Trapezoidal, Standing Seam, and Corrugated designs—each with vastly different rib or wave heights. If an installer uses an L-foot that is too short, the horizontal solar rail will press directly against or crush the roof's crests when tightened. This not only damages the roof sheet but also compromises the structural integrity of the racking. Choosing an L-foot with the correct height ensures adequate clearance above the specific corrugation profile of your roof.

2. Boosting Ventilation & Cooling for Higher Power Yields
Solar panel ventilation and cooling, panels do not like the heat. During peak summer months, metal roof temperatures can skyrocket to 70℃（150℉）or higher. Because photovoltaic modules have a negative temperature coefficient, their power output drops for every 1℃ increase above standard test conditions.
When panels are mounted too close to the roof, hot air becomes trapped underneath. By stepping up to a taller L-feet profile (e.g., upgrading from 80mm to 105mm or 125mm), you create a wider air gap. This enhances natural convection and cooling, which can prevent hot spots and unlock a permanent long-term power generation gain of several percentage points.
3. Adjusting for Roof Unevenness
Many older commercial and industrial roofs suffer from structural sagging, settling, or uneven purlin alignments. If you use uniform, short L-feet across an uneven roof, your finished solar array will look wavy, creating uneven mechanical stress across the panels. Utilizing a mix of different L-feet heights, combined with the vertical adjustment ranges (slotted holes) built into our designs, serves as a construction "lifesaver"—allowing installation teams to achieve a perfectly leveled, flat solar array even on imperfect roofs.
Art Sign L-Feet Height Matrix & Application Guide

100% Leak-Proof Reliability
No matter which height you choose, roof integrity is our top priority. Every single Art Sign L-foot comes equipped with a premium, heavy-duty EPDM rubber pad at the base. When fastened, the EPDM compresses perfectly around the screw hole, creating a durable barrier that is UV-resistant, weather-proof, and guarantees 100% waterproof protection over the 25-year lifespan of your solar system.

Ready to Optimize Your Next Metal Roof Project?
Choosing the right L-feet height is an investment in both the safety and financial ROI of your solar system. Whether you need a low-profile 59mm solution for a high-wind zone or a 150mm bracket for maximum airflow, Art Sign has the engineering expertise to back your project.
Contact the Art Sign engineering team today to share your roof layouts. We will provide free static calculations and recommend the perfect customized L-feet configuration for your project!
